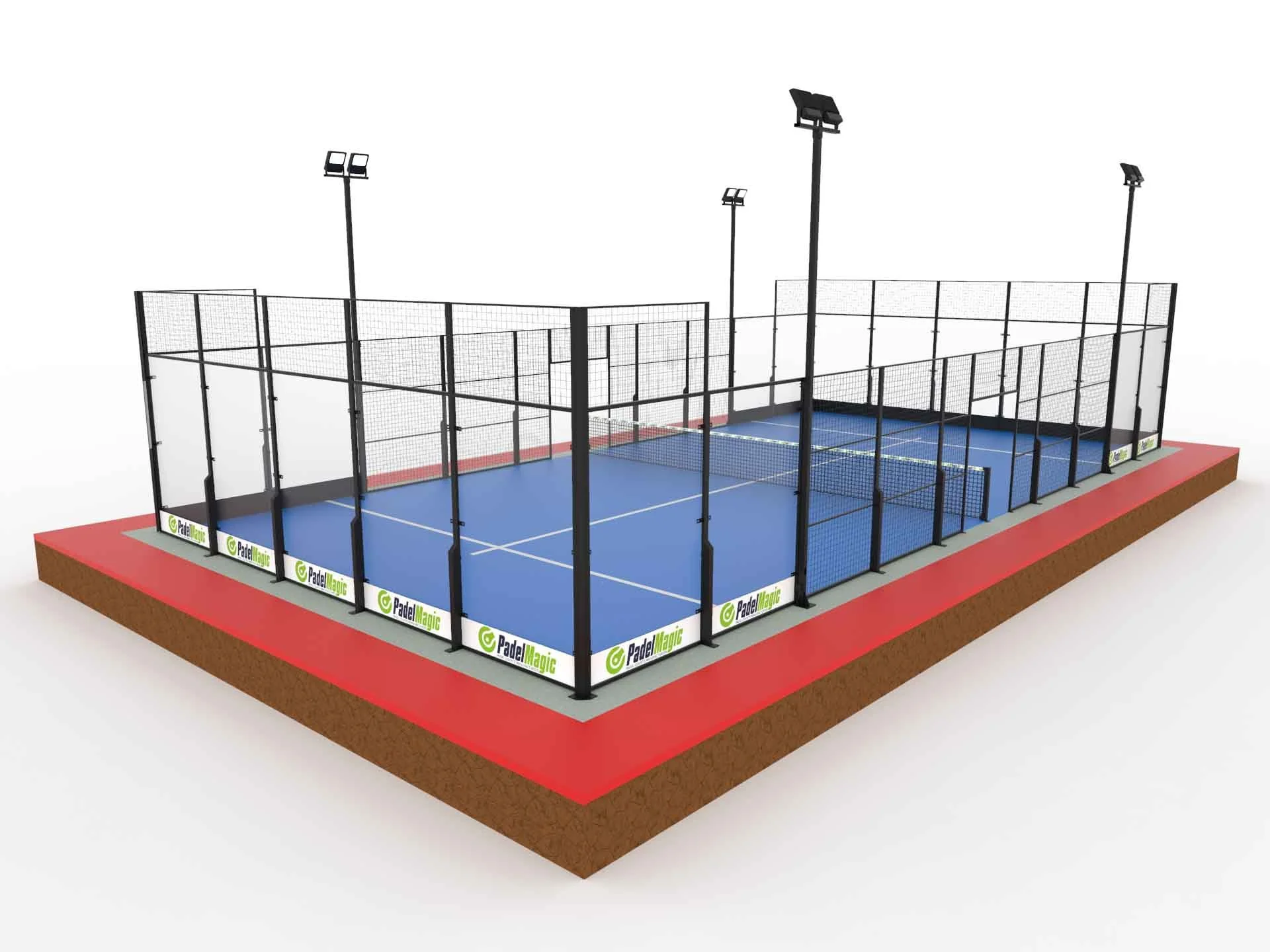

ECO Standard
Padel Court
The Eco Standard padel court stands out as a top budget-friendly choice for padel tennis enthusiasts. Renowned for it’s durability, this court features a continuous metal mesh between frames, ensuring safety during play. With both metal mesh and glass securely framed around their perimeters, it delivers not only a highly robust quality but also aesthetic finish. This court also offers customisation options such as laser-engraved logos in the corners, providing a unique, personalised touch.
Why choose a PadelMagic court?
PadelMagic has been supplying courts across the world for the last sixteen years and is recognised as one of the top manufacturers of both court structures and grass. Each location has its own unique characteristics and our team will guide you through the process from an initial site meeting to completion of the courts. We provide courts for both indoors and outdoors and have a bespoke base system allowing courts to be installed quickly with minimal groundworks and therefore cost (subject to site survey).
At PadelMagicUK we have an experienced professional team that will carry out an initial site survey, design the best solution for your venue, submit a planning application using our experienced planning team and construct the courts and maintain them if required. All our courts come with a five year warranty .
Scroll down to view technical specification.
Technical specifications for the ECO Standard Padel Court
-
14 modules of 4000×2000mm. of structural tube 40x40x2mm. steel with electro welded mesh 50x50x4mm. 2000×1000mm. steel in the upper part with a hole for 2995x1995x10 mm glass.
4 modules of 3000×2000mm. of structural tube 40x40x2mm. steel with hole for 2995x1995x10mm glass.
4 modules of 3000×2000mm. of structural tube 40x40x2mm. steel with electro welded mesh 50x50x4mm. steel for access to play area. Fixing in each module by means of 20 reinforcing posts in 80x80x2mm tube, 1250mm length, 230x140x10mm anchor plates. of steel.
8 modules of 3000×2000mm. of structural tube 40x40x2mm. steel with electro welded mesh 50x50x4mm. 3000×2000mm. of steel
-
18 tempered glass 2.995 × 1.995 × 12 mm. CE certification. Spanish manufacturer
-
Free access gates on both sides of the track (Word padel tour).
If the client needs it, double doors can be installed on one or both sides of the court, even provide the domotic module for its automatic opening linked to an online reservation. BEST DOMOTIC SYSTEM IN MARKET. NO INTERNET REQUIRED
-
4 posts of 80x80x2 of 6000 (±3)mm with the same finish as the rest of the track.
4 supports for spotlights made of 80x40x1.5 mm tube with 100x80x6 welded plates mm with 14 diameter through-holes for fixing the spotlights.
8 Spotlights 200W and 26,000 lumens
-
All our courts include the complete set to install a complete Padel court:
8 200w LED SPOTLIGHTS
Silica sand
Gaming net
Neoprene
Screw kit
Tape and glue for installation grass.
Doors (optional)
Safety net at the top (optional)
-
Hex head screw M10X100
Hex head screw M10X60
Hex head screw M10X110
Wide flange flat washer M10
Self-locking hex nut M10
P16 washer self-drilling screw
Zinc plated M12x110 male anchor
M12 bolt/nut protection cap
Black ferrule 80×80
Black ferrule 80×4
Black ferrule 40×40
Black Round Ferrule Ø18 end cap
Round Black Ferrule Ø14
GLASS KIT
110 Zn screws M8x30
110 M8 sockets
110 Zn self-locking nuts.
110 wide flange washers zn
200 ml weather stripping 40×4
Zn turnbuckle 35 mm
